Unit Module	Item	Parameter
	Model Number	Floor series
	Module size	/
	Pixel pitch	P2.5mm, 2.9mm, P3.91mm
	Pixels Density	/
	Pixel configuration	3 IN 1 LED
	Package mode	SMD
	Pixel resolution	/
	Max Power consumption	23W
	Module thickness	60mm
	Weight	2.55kg
	Drive type	Constant drive
	Scan mode	Static
	Port type	S65
	Brightness of white balance	1800－3000cd/㎡

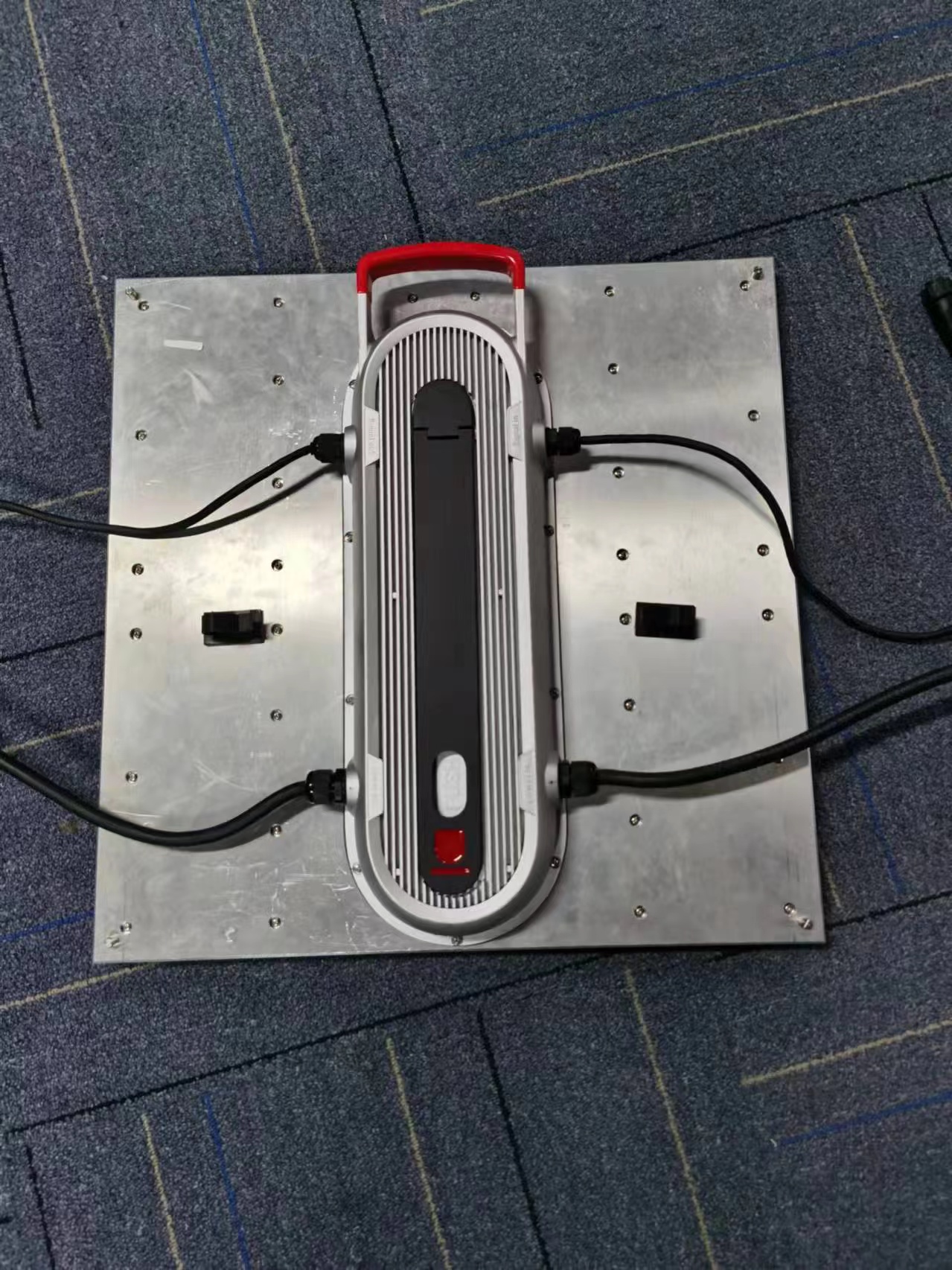

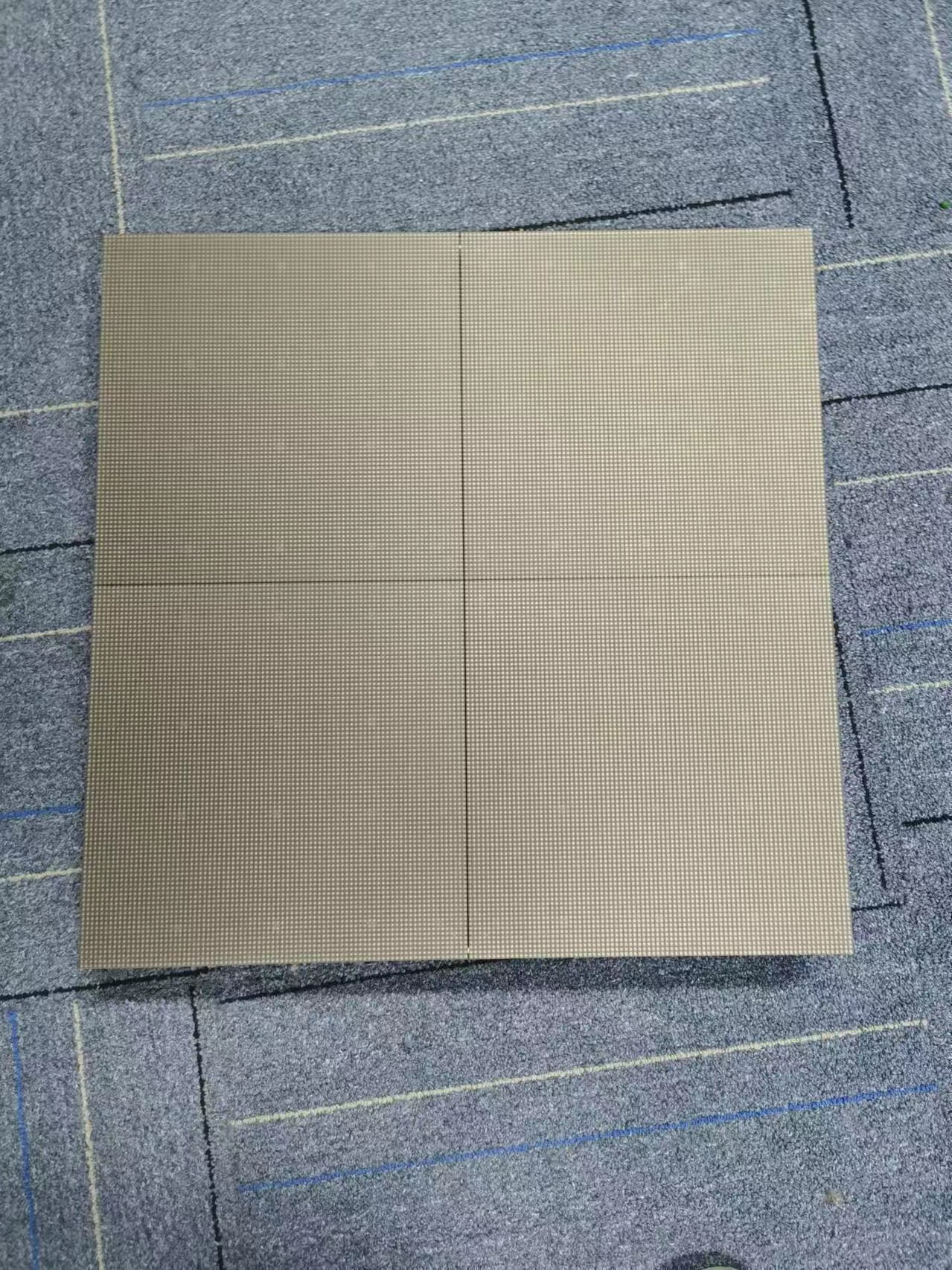

Cabinet	Dimension	500mm×500mm×80mm
	Quantity of Module	16
	Power supply	5V/40A
	Thermal discharge	fanless design
	Pixel per cabinet	144dots * 18dots
	Best viewing distance	15M～200M
	Best viewing angles	140°(W) 140°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Operation humidity	10%-95%
	Thickness	66mm
Power	Working voltage	AC110-220V±10%
	Average Power consumption	≤400W/㎡
	Max.Power consumption	≤800W/㎡
	Current	≤20mA(single LED)
Main technical   parameter	Driving device	Constant current driver IC
	Refresh rate	≥1920HZ
	Grey scale/colors	256levels of each color(RGB)/16.7M colors
	MTBF	≥100000 hours
	Operating System	winxp/win 7/win8
	Screen application	Outdoor permanent installtion series
