Unit Module	Item	Parameter
	Model Number	CG-P6-4S
	Module size	192mm*96mm
	Pixel pitch	6mm
	Pixels Density	27777点/m2
	Pixel configuration	1R1G1B
	Package mode	SMD2828
	Pixel resolution	32dots(W)*16 dots(H)
	Max Power	20W
	Module thickness	17.05mm
	Weight	0.202kg
	Drive type	Constant drive
	Scan mode	1/4scan
	Port type	HUB75-A
	Brightness of white balance	≥6500cd/m2

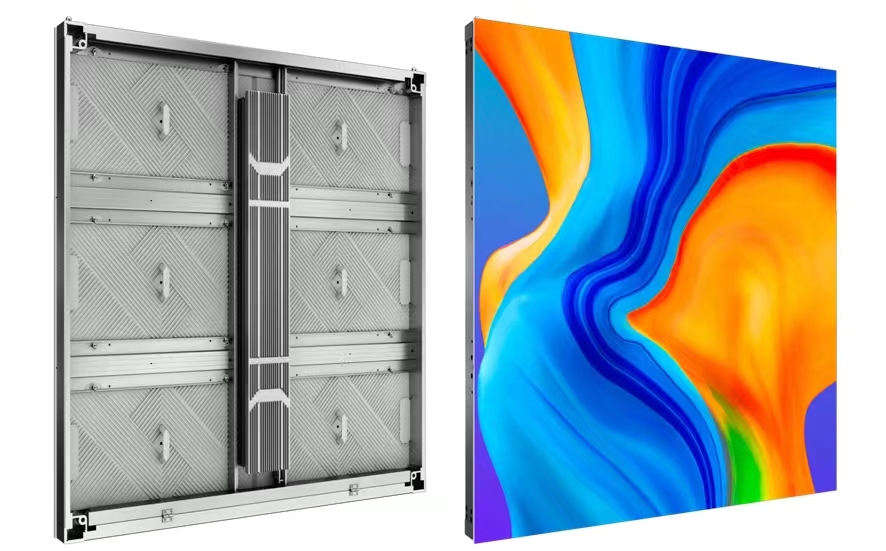

Cabinet	Dimension	576mm*576mm
	Monomer Module Number	18
	Power supply	5V/40A*2 pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96 * 96 dots
	Best viewing distance	6M～40M
	Best viewing angles	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	85mm
Power	Working voltage	AC220V±10%
	Average Power consumption	300W/㎡
	Max.Power consumption	≤1000W/㎡
	Current	≤20mA(single LED)
Main technical   parameter	Driving device	Constant drive IC
	Refresh frequency	≥400HZ
	Grey scale/colors	256levels of each color(RGB)/16.7M colors
	Lifespan	≥100000 hours
	Power switch	Automatic switch
	Display Mode	800*600/1024*768
