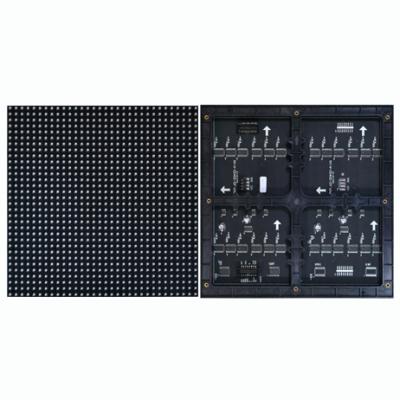

Unit Module	Item	Parameter
	Model Number	CG-P7.62-16S	CG-P7.62-8S
	Module size	244mm*244mm	244mm*122mm
	Pixel pitch	7.62mm
	Pixels Density	17222 dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD3528
	Pixel resolution	32dots(W)*32dots(H)	32dots(W)*16dots(H)
	Max Power consumption	15W	13W
	Module thickness	17.06mm（without magnet）
		28.92mm（with magnet）
	Weight	0.45kg
	Drive type	Constant drive
	Scan mode	1/16scan		1/8scan
	Port type	HUB75-A
	Brightness of white balance	≥800cd/m2		≥1500cd/m2
	Package of Carton	467*555*284mm
	Quantity	80 pcs
	G.weight	19.7kg
Cabinet	Dimension	732mm*732mm	732mm*732mm
	Quantity of Module	9	18
	Power supply	5V/40A*2 pcs	5V/40A*2 pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96 * 96 dots
	Best viewing distance	7M～40M
	Best viewing angles	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Operation humidity	10%-95%
	Thickness	85mm
Power	Working voltage	AC220V±10%
	Average Power consumption	160W/㎡	140W/㎡
	Max.Power consumption	≤480W㎡	≤400W㎡
	Current	≤20mA(single LED)
Main technical   parameter	Driving device	Constant current driver IC
	Refresh frequency	≥400HZ
	Grey scale/colors	256 levels of each color(RGB)/16.7M colors
	Lifespan	≥100000 hours
	Power switch	Automatic switch
	Display Mode	800*600/1024*768
