Unit Module	Item	Parameter
	Model Number	In-MulFun-series
	Module size	240mm * 240mm
	Pixel pitch	3mm
	Pixels Density	111111 dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD2121/SMD2020
	Pixel resolution	80dots * 80dots
	Max Power consumption	18W
	Module thickness	14.66mm（without magnet）
		26.55mm（with magnet）
	Weight	0.355kg
	Drive type	Constant drive
	Scan mode	1/16scan
	Port type	HUB75-A
	Brightness of white balance	≥800cd/m2

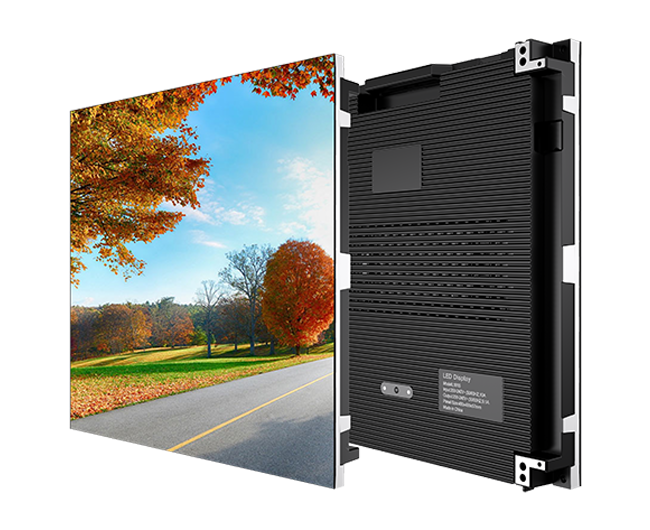

Cabinet	Dimension	480mm x 480mm x 66mm
	Quantity of Module	4
	Power supply	5V/40A
	Thermal discharge	fanless design
	Pixel per cabinet	160dots * 160dots
	Best viewing distance	3M～20M
	Best viewing angles	140°(W) 140°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Operation humidity	10%-95%
	Thickness	66mm
Power	Working voltage	AC110-220V±10%
	Average Power consumption	≤180W/㎡
	Max.Power consumption	≤500W/㎡
	Current	≤20mA(single LED)
Main technical   parameter	Driving device	Constant current driver IC
	Refresh rate	≥1920HZ
	Grey scale/colors	256levels of each color(RGB)/16.7M colors
	MTBF	≥100000 hours
	Operating System	winxp/win 7/win8
	Screen application	Indoor permanent installtion series
