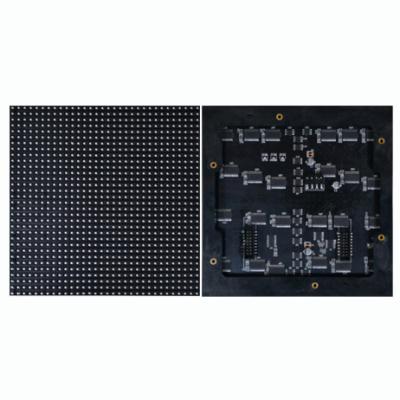

  • P5 Full Color LED Screen
  •
Specifications



Unit Module  Item Parameter
Model Number CG-P5-16S CG-P5-8S
Module size 320mm*160mm 160mm*160mm
Module thickness 14.27mm
Pixel pitch 5mm
Pixels Density 40000 dots/m2
Pixel configuration 1R1G1B
Package mode SMD3528
Pixel resolution 64dots(W)*32dots(H) 32dots(W)*32dots(H)
Max Power consumption 18W 15W
Module thickness 14.27mm (without magnet)
29.33mm (with magnet)
Weight 0.210kg 0.154
Drive type Constant drive
Scan mode  1/16scan 1/8scan
Port type HUB75-A
Brightness of white balance ≥1500cd/m2  ≥2800cd/m2
Package of Carton 467*387*360mm
Quantity 40pcs 80pcs
G.weight 18.3kg

Cabinet  Dimension 640mm*640mm
Quantity of Module 16
Power supply 5V/40A*2 pcs
Thermal discharge fan 2pcs
Pixel per cabinet 128mm*128mm
Best viewing distance 5M~30M
Best viewing angles 160°(W) 120°(H)
Temperature storage:-35℃~+85℃
working:-20℃~+50℃
Operation humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption ≤1180W/㎡ ≤270W/㎡
Max.Power consumption ≤500W/㎡ ≤800W/㎡
Current ≤20mA(single LED)
Main technical
  parameter
Driving device Constant current driver IC
Refresh frequency ≥400HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
Lifespan ≥100000 hours
Power switch Automatic switch
Display Mode 800*600/1024*768
