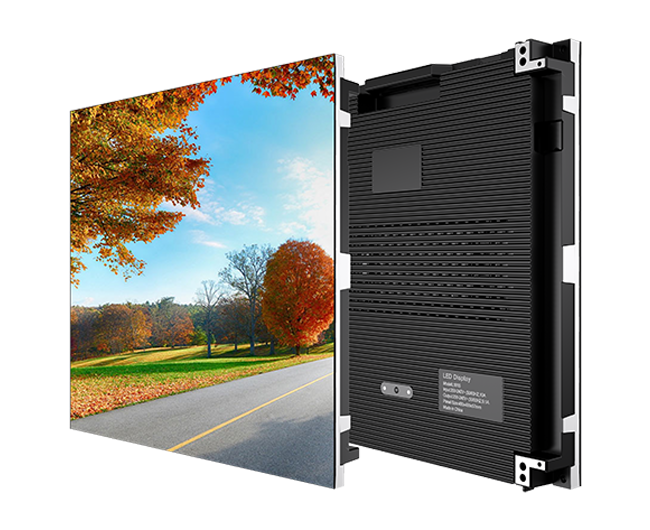

  • P1.667 Full Color LED Screen
  •
Specifications



Unit Module  Item Parameter
Model Number CG-P1.667-30S
Module size 200*100mm
Pixel pitch 1.667mm
Pixels Density 360,000 dots/m2
Pixel configuration 1R1G1B
Package mode SMD0707
Pixel resolution 120 dots (W) * 60 dots (H)
Max Power consumption 20W
Module thickness 14.75mm(without magnets)
26.63mm(with magnets)
Weight 0.4kg
Drive type Constant drive
Scan mode   1/30 scan
Port type HUB75-E
Brightness of white balance ≥1200cd/m2
Cabinet Dimension 400mm*300mm
Quantity of Module 6
Power supply 5V/60A*1 pcs
Thermal discharge fan 1pcs
Pixel per cabinet 240*180 dots
Best viewing distance 2~15m
Best viewing angles 160°(W) 160°(H)
Temperature storage:-35℃~+85℃
working:-20℃~+50℃
Operation humidity 10%-95%
Thickness 75mm
Power Working voltage AC220V±10%
Average Power consumption 233W/㎡
Max.Power consumption ≤900W/㎡
Current ≤20mA(single LED)
Main technical
  parameter
Driving device Constant current driver IC
Refresh frequency ≥2000HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
Lifespan ≥100000 hours
Power switch Automatic switch
Display Mode 800*600/1024*768
