Unit Module	Item	Parameter
	Model Number	In-Mul-Pro-series
	Module size	150mm*168.75mm
	Pixel pitch	1.56mm
	Pixels Density	409600 dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD1010
	Pixel resolution	96dots(W)*108 dots(H)
	Max Power consumption	18.5W
	Module thickness	14.66mm（without magnets）
		26.55mm（with magnets）
	Weight	0.255kg
	Drive type	Constant drive
	Scan mode	1/32scan
	Port type	HUB75-A
	Brightness of white balance	≥880cd/m2

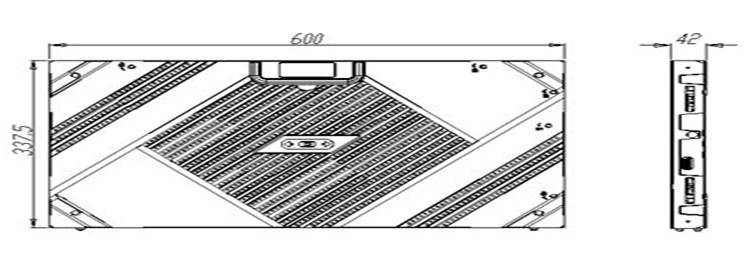

Cabinet	Dimension	600mm*337.5mm*76mm
	Quantity of Module	4
	Power supply	5V/40A
	Thermal discharge	fanless design
	Pixel per cabinet	384*216
	Best viewing distance	1.56M～20M
	Best viewing angles	140°(W) 140°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Operation humidity	10%-95%
	Thickness	76mm
Power	Working voltage	AC110-220V±10%
	Average Power consumption	180W/㎡
	Max.Power consumption	≤500W/㎡
	Current	≤20mA(single LED)
Main technical   parameter	Driving device	Constant current driver IC
	Refresh frequency	≥3840HZ
	Grey scale/colors	256levels of each color(RGB)/16.7M colors
	Lifespan	≥100000 hours
	Operating System	winxp/win 7/win8
	Screen application	Indoor permanent installtion series
